Specification for Providing a Test Cases Database

Database Presence

The database name must be "testCases". A Derby database is stored in files that live in a directory of the same name as the database. Database directories typically live in system directories.

You define the system directory when Derby starts up by specifying a Java system property called derby.system.home. See the Derby Developer's Guide for details. For example, if the "testCases" directory is a subdirectory of the $HOME/derby directory, then FSS could be launched with:

  $ cd /opt/fss
  $ java -d64 -cp fss.jar:table.jar:JHDL.jar:axis2-adb-1.2.jar:derby.jar -Dderby.system.home=$HOME/derby com.alanfeldstein.sparc.fss.SparcCaseStudy &

The third command-line option, -Dderby.system.home=$HOME/derby sets a system property value.

One way to create a new database is to specify attributes to the Derby connection URL. Such a method is shown in the Derby Tools and Utilities Guide. Another method is programmatically (e.g. from a random test program generator), using class org.apache.derby.jdbc.EmbeddedDataSource40.

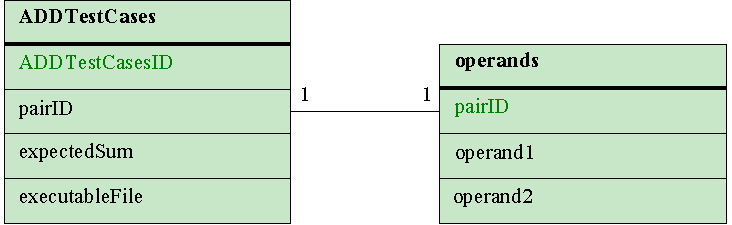

Logical Schema

CREATE TABLE "operands"
(
"pairID" BIGINT NOT NULL GENERATED ALWAYS AS IDENTITY PRIMARY KEY ,
"operand1" BIGINT NOT NULL ,
"operand2" BIGINT NOT NULL
);

CREATE TABLE "ADDTestCases"
(
"ADDTestCasesID" BIGINT NOT NULL GENERATED ALWAYS AS IDENTITY PRIMARY KEY ,
"pairID" BIGINT NOT NULL ,
FOREIGN KEY ( "pairID" ) REFERENCES "operands" ( "pairID" ) ,
"expectedSum" BIGINT NOT NULL ,
"executableFile" BLOB(2G) NOT NULL
);

Semantics

operand1 and operand2 are used here as addends. They are stimuli to the design under verification and its implementation of the SPARC-V9 ADD instruction. expectedSum is self-explanatory.

executableFile requires more explanation. The binary string that goes into that column must be in ELF. At the end of each simulation run, FSS will look for an extended word at address 0000 0001 0010 0118₁₆. That extended word is the actual sum.
